Hot Wire Cutter

99.90

Κωδικός προϊόντος: 10015 Κατηγορία:

Περιγραφή

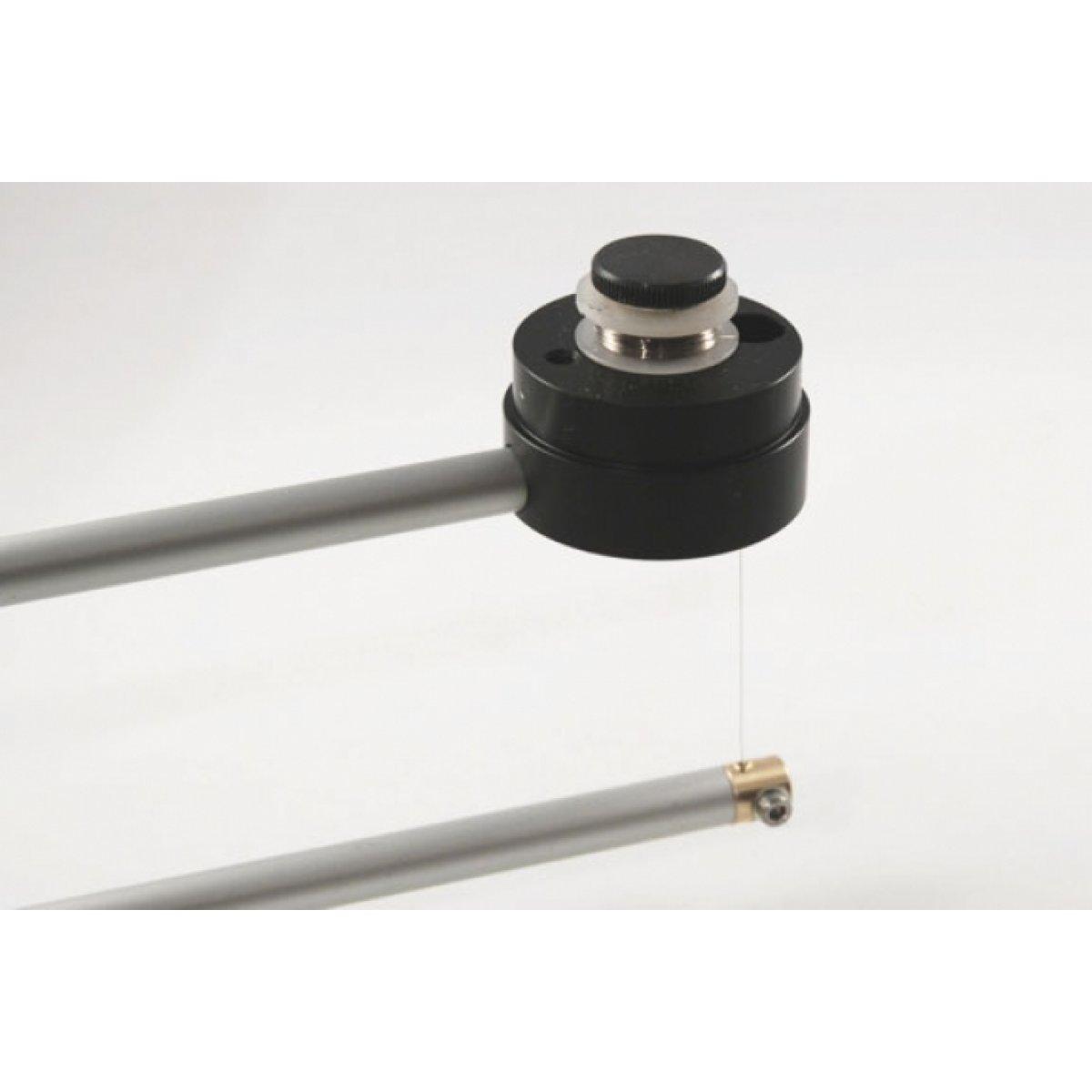

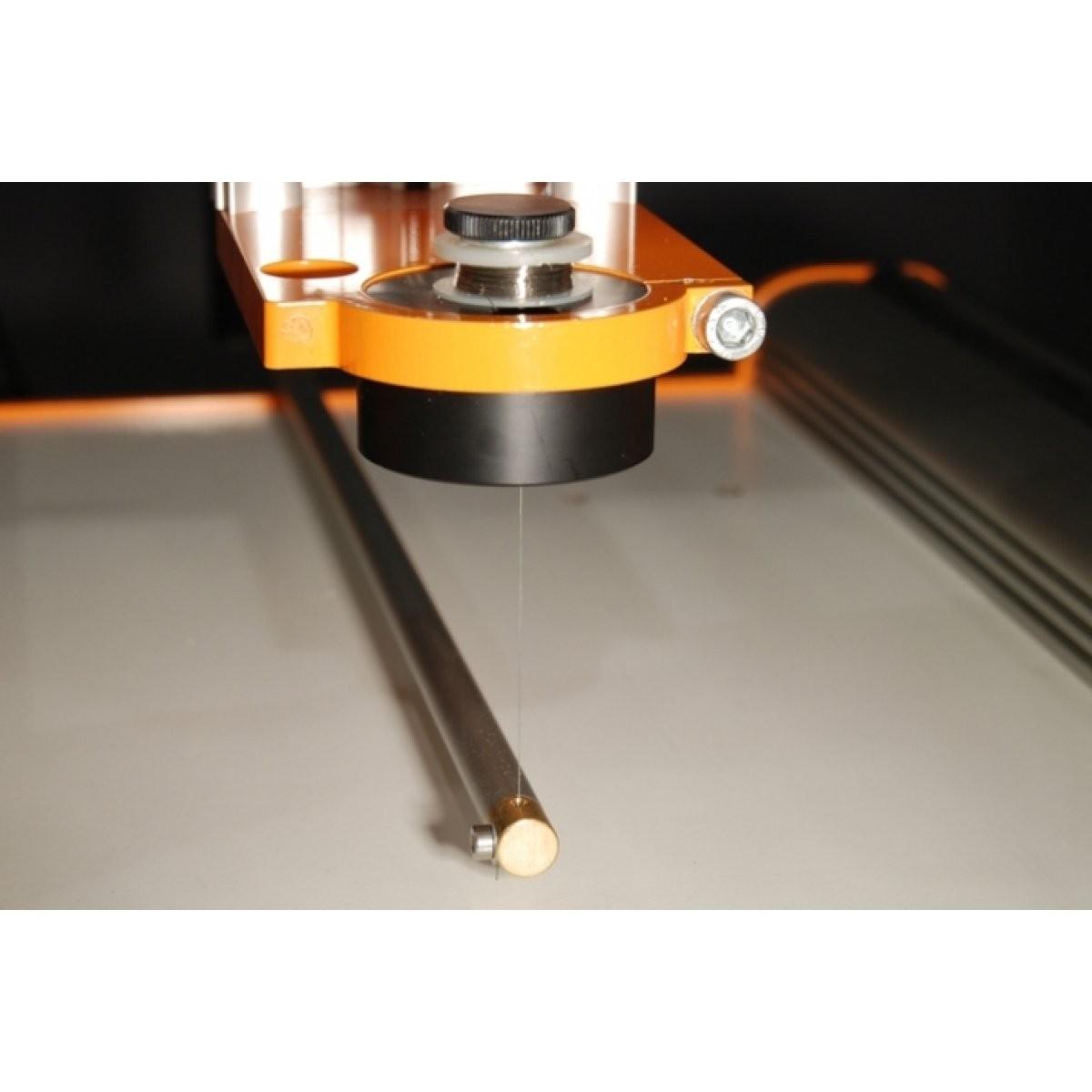

The Hot Wire Cutter for STEPCRAFT machines. The tool enables precise cutting of all materials like styrofoam, expandable polystyrene (EPS) or polypropylene (EPP). The maximum thickness of the material is 50 mm. The maximum cutting length is 430 mm. The cutting wire is made of a special robust and durable nickel-chromium alloy.

Technical Data:

100 – 240 V, 50/60 Hz
Output controllable up to 7,0 V at 1,9 A
Existing Win PC-NC installations can be easily updated free of charge
Temperature of hot wire cutter between approx. 100 and 300° C (212 and 570° F)

Scope of Delivery:

1x Hot Wire Cutter
1x Power supply
1x Wire coil (30 m cutting wire Ø = 0,2 mm)

Support:

Operating and Safety Instructions Hot Wire Cutter
