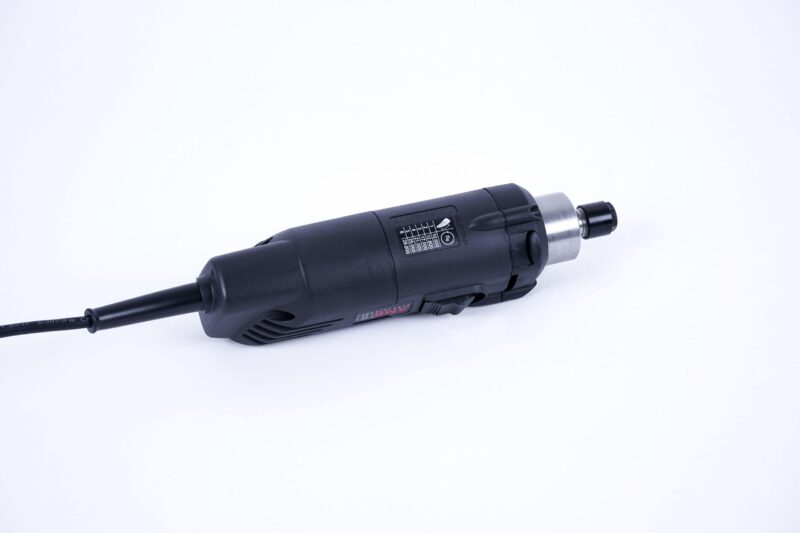

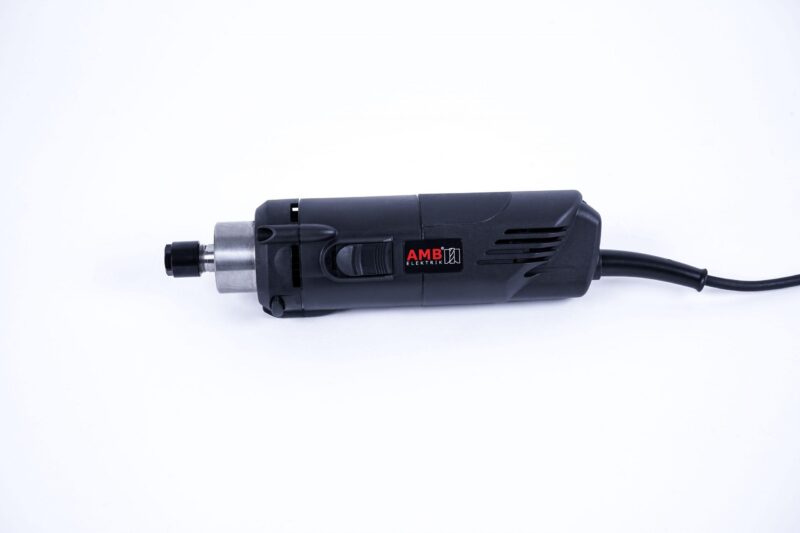

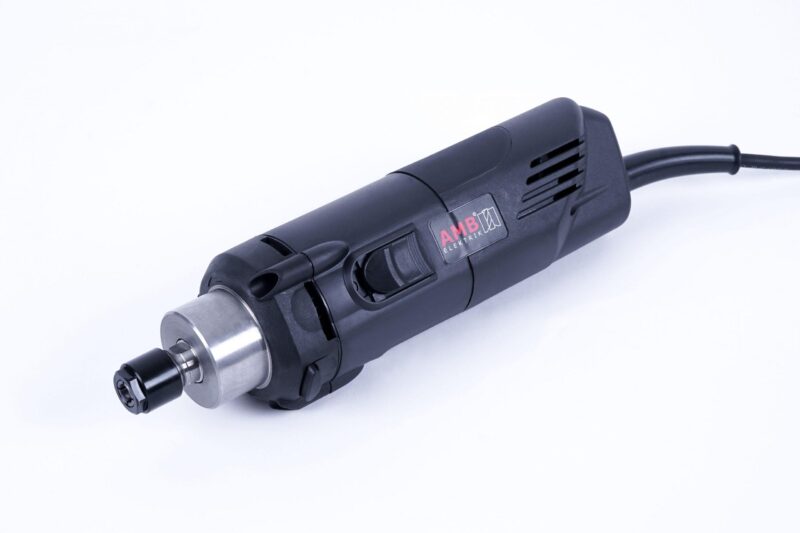

KRESS / AMB Milling Motor 1050 FME-1 230V με manual ελεγχο στροφων

Τhe AMB-KRESS 1050 FME-1 has been constructed especially for the use with CNC portal milling machines. The 1050 FME-1 contains an integrated stainless steel motor flange with double bearing for higher milling performance and ensures an exact guidance and a high concentricity due to its precision collet.

Note: Please take into consideration that this milling motor is not compatible with the 1^st generation machines of the D-Series.

Technical Data:

• Input power: 1050 W
• Output power: 600 W
• No-load speed: 5.000 - 25.000 U/min
• Max. concentricity: 0,05 mm
• Collet: Kress, 3,175  mm
• Clamping collar diameter: 43 mm
• Tool weight: 1,7 kg
• Shaft diameter: 1,0 - 8,0 mm
• Power cable with patent-quick-catch and rubber cable of 4 m length
